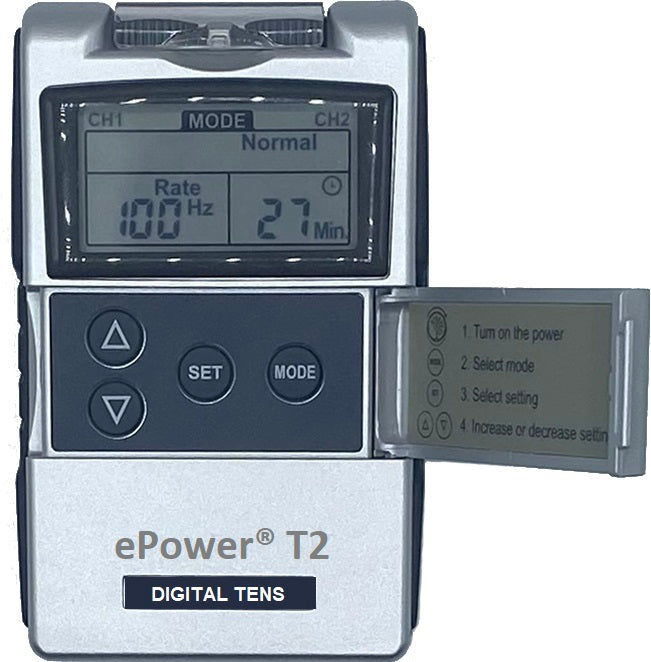

T2 Digital TENS Unit

ePower® T2 Digital TENS Unit: 12 Modes & Timer, Electrotherapy Device with Accessories

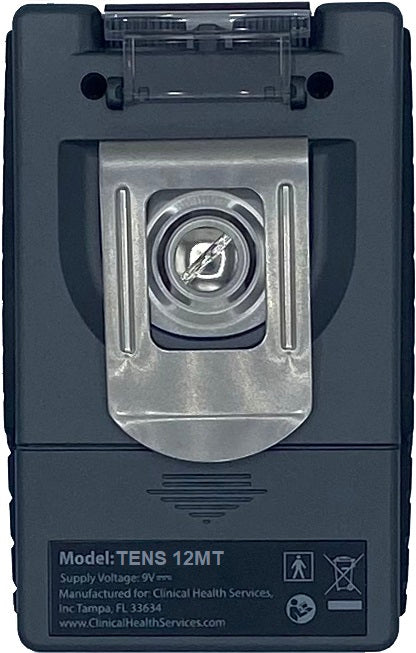

Digital 12 Mode Tens(7 Preset Programs and 5 Modes), Safety Amplitude Cap, 100mA output, High Quality Electrodes, Compliance Meter, which makes this Our Nicest and most Powerful (100mA) TENS unit. TENS 12MT features include, Dual Channel, 12 modes, Timer, Patient Compliance Meter, New Stronger 100mA output, safety amplitude cover, sturdy metal belt clip, rubber side railings for maximum handling and a premium silver finish.

Digital TENS Unit Specifications:
Channels: Dual Channel, isolated between channels
Pulse Amplitude: Adjustable, 0-100 mA peak into 500 ohm load each channel.
Voltage: 0 - 50V (Load: 500 ohm)
Pulse Rate: Adjustable, from 2 to 150 Hz, 1 Hz/step
Pulse Width: Adjustable, from 50 to 300 microseconds, 10uS/step
Wave Form: Asymmetrical Bi-Phasic Square Pulse
12 Modes: B(Burst), N(Normal), M(Modulation), SD1(Strength Duration), SD2, P1, P2, P3, P4, P5, P6, P7
Burst Mode: Burst rate: Adjustable, 0-5 ? 5Hz; Pulse width adjustable, 50~300uS; Frequency fixed = 100 Hz
Normal Mode: The pulse rate and pulse width are adjustable. It generates continuous stimulation based on the setting value.
Modulation mode is a combination of pulse rate and pulse width modulation. The pulse rate and width are automatically varied in a cycle pattern. The pulse width is decreased by 50% from its original setting in 0.5 second, then the pulse rate is decreased by 50% from its original setting in 0.5 second. Total cycle time is 1 second. In this mode, pulse rate(2-150Hz) and pulse width(50-300S) are fully adjustable.

The SD1(Strength-Duration) mode consists of automatic modulation intensity and pulse width in 40% range. The intensity is always increasing while the pulse width is decreasing and vice-versa. The intensity is decreased by 40% while the pulse width is increased by 40% in 5 seconds. In the next 5 seconds, the intensity is increased by 40% while the pulse width is decreased by 40%. Total cycle time is 10 seconds. Pulse rate(from 2~150Hz) and pulse width (from 50~300S) are fully adjustable.

The SD2(Strength-Duration) mode consists of automatic modulation intensity and pulse width in 70% range. The intensity is always increasing while the pulse width is decreasing and vice-versa. The intensity is decreased by 70% while the pulse width is increased by 70% in 5 seconds. In the next 5 seconds, the intensity is increased by 70% while the pulse width is decreased by 70%. Total cycle time is 10 seconds. Pulse rate(from 2~150Hz) and pulse width (from 50~300S) are fully adjustable.

P1 (Burst) Mode Burst rate: 2Hz Pulse width: 180μs Frequency fixed : 100 Hz
P2 ( Normal) Mode Pulse rate: 100Hz Pulse width: 180μs
P3 (Normal) Mode Pulse rate: 2Hz Pulse width: 200μs
P4 (Modulation) Mode Pulse rate: 15Hz Pulse width: 180μs
P5 (Modulation)Mode Pulse rate: 80Hz Pulse width: 180μs
P6 (SD2)Mode Pulse rate: 10Hz Pulse width: 200μs
P7 (SD1) Mode Pulse rate: 50Hz Pulse width: 250μ
Patient Compliance Meter: This unit can store 60 sets of operation records. Total recorded time is 999 hours.

Timer: Adjustable, from 5 to 60 minutes or Continuous. Adjustable in 5 minutes each step. Treatment time countdown automatically.

1 Year Manufacturer Warranty

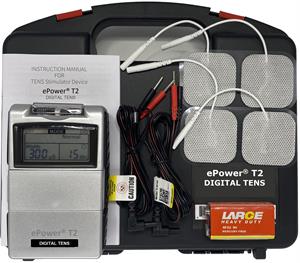

System Includes: Stimulator, Lead Wires, 1 package of high quality Self-Adhesive Electrodes, 9V Battery, Hard Plastic Carrying Case, Instruction Booklet.
